Reference for Head-Sized Sphere

1a. Homogeneous Head-Sized Sphere

The reference solutions for the homogeneous head-sized sphere were calculated using an analytical reference [17]. The following reference solutions are provided:

900 MHz

• $\Ptotal = 4.396190692661846 \cdot 10^{-5} \quad \mathrm{W}$

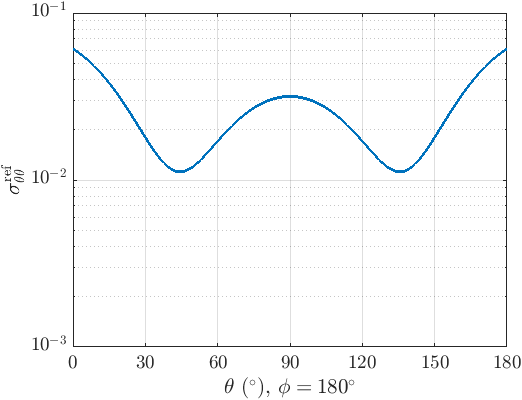

• $\RCST{}$ at $\phi = \pi$ for $\theta=[0,\pi ]$. Table available here.

• Visualization of the power density distribution


1b. 4-Layered Head-Sized Sphere

The reference solutions for the 4-layered head-sized sphere were calculated using an analytical reference [17]. The following reference solutions are provided:

900 MHz

• $\Ptotal = 6.969853171431552 \cdot 10^{-5} \quad \mathrm{W}$

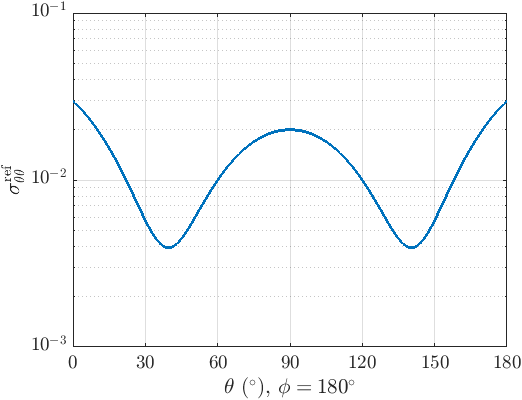

• $\RCST{}$ at $\phi = \pi$ for $\theta=[0,\pi ]$. Table available here.

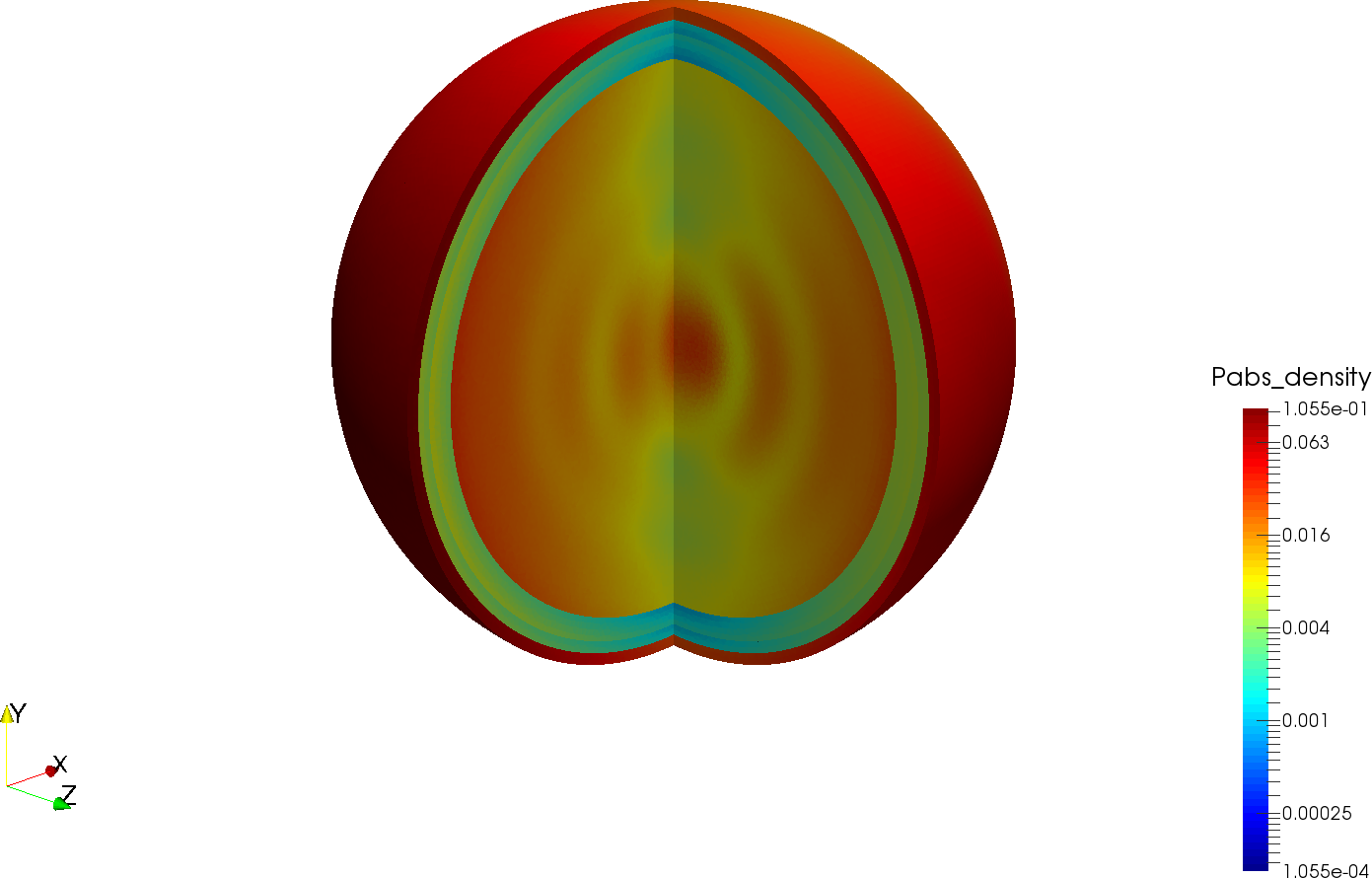

• Visualization of the power density distribution
