Reference for AustinMan

4a.Homogeneous AustinMan v2.3

We are working on generating a surface model of AustinMan v2.3 to use in the benchmark.

4b. Inhomogeneous AustinMan v2.3

The reference solutions for the inhomogeneous AustinMan v2.3 were calculated using a numerical method—Method 2, AIM-Voxel. The following reference solutions are provided:

900 MHz

• $\Ptotal \approx 8.092 \cdot 10^{-4} \quad \mathrm{W}$

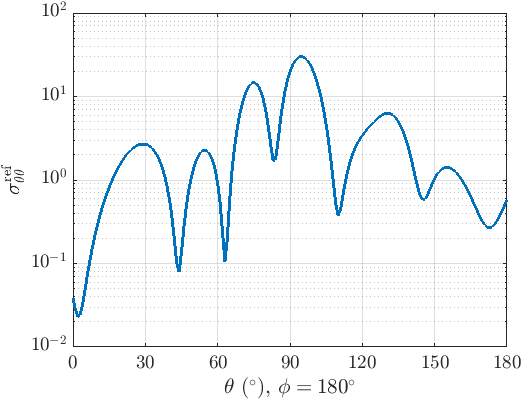

• $\RCST{}$ at $\phi = \pi$ for $\theta=[0,\pi ]$. Table available here.

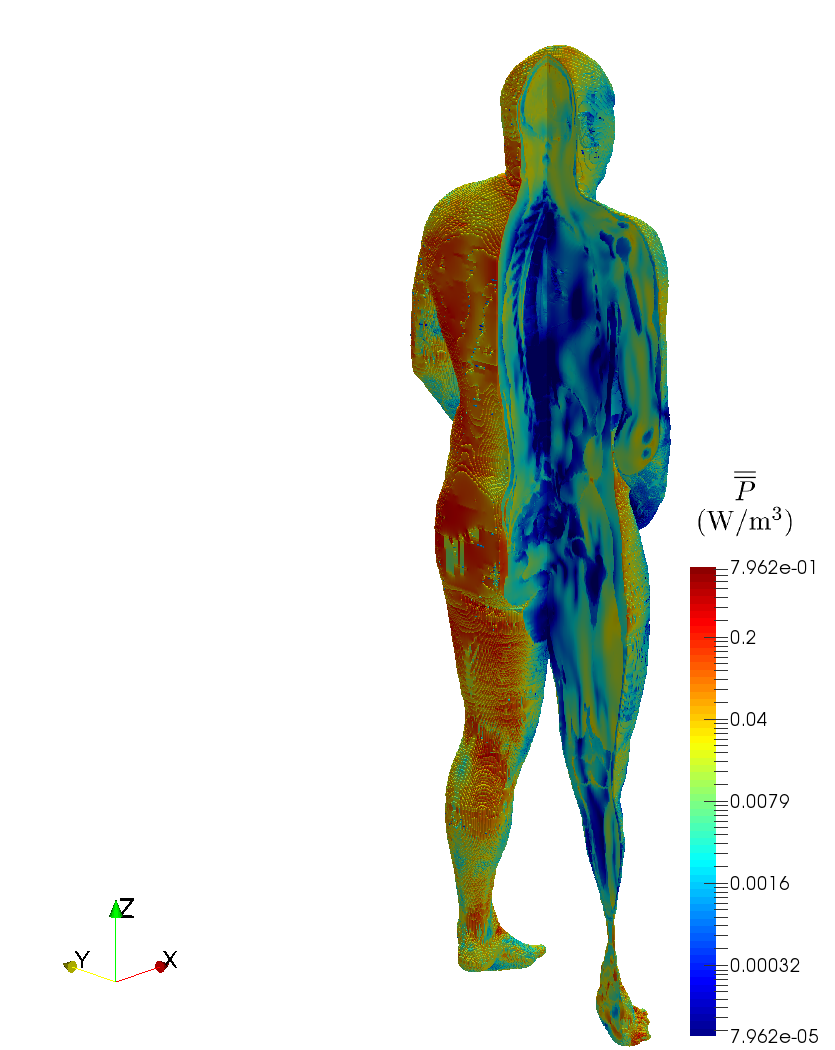

• Visualization of the power density distribution
